How Many Amps Does A Refrigerator Use?

You might wonder, how many amps does a refrigerator use? Most home refrigerators use between 3 and 6 amps when running. A stainless steel refrigerator or an energy-saving fridge may use only 1.5 to 4 amps. Knowing refrigerator amps helps you plan circuits safely. It also helps you avoid electrical overloads. This is important in busy kitchens or restaurants. The table below explains why knowing how many amps a refrigerator uses is important for safety and saving energy:

You can also check how many watts a refrigerator uses. This helps you manage your fridge and other kitchen equipment better.

Most home refrigerators use between 2.5 and 6.7 amps. Energy-efficient and mini fridges use even less power. Knowing how many amps your refrigerator uses is important. It helps you make safe electrical circuits. This also stops your kitchen from getting overloaded. You can check the label on your fridge to find the amps. You can also use an energy meter to check. A special circuit with the right breaker and wire size is needed. This keeps your fridge safe and stops electrical problems. Picking energy-saving models helps lower power use. Stainless steel fridges from GD ASIAN GROUP are good choices. They help you save money too.

Refrigerator Amps

How Many Amps

You may wonder how many amps a refrigerator uses. The answer changes based on the fridge’s size and type. Most regular home refrigerators use between 2.5 and 6.7 amps. Energy-efficient fridges use less, usually from 1.25 to 3.3 amps. Mini fridges use even less power, sometimes only 0.4 amps. Commercial refrigerators, like those in hotels or restaurants, can use up to 12.5 amps.

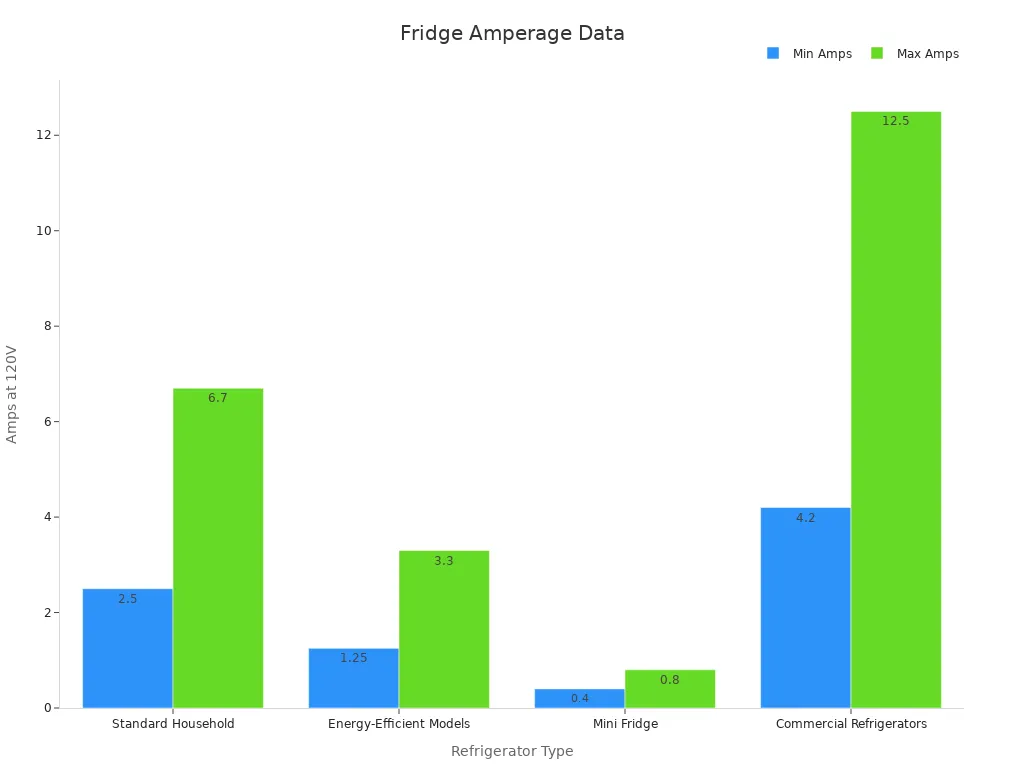

Here is a table that shows the usual amp and watt ranges for different types of refrigerators:

Refrigerators do not use the same amount of power all the time. The compressor turns on and off during the day. When it starts, the amps can jump much higher than normal. For example, a fridge that runs at 3 amps might go up to 6 or 9 amps for a short time. This matters when you plan your kitchen’s electrical circuits.

If you want to know your fridge’s exact amp draw, you can use a Kill-A-Watt meter, a clamp meter, or a smart plug that tracks power. These tools show you real-time numbers. You can also look at the label on your fridge for amp or watt info. The label tells you the amps while the fridge is running, not the average over time. The average wattage is lower because the compressor is not always on.

Stainless Steel Refrigerator Amps

A stainless steel refrigerator often uses less energy than old fridges. Many stainless steel models from GD ASIAN GROUP have better compressors and insulation. This helps keep the amps low, usually between 1.5 and 4 amps for most homes. Commercial stainless steel fridges, like those in restaurants, can use more power. These can draw between 4.2 and 12.5 amps, depending on their size and features.

Stainless steel fridges are common in homes and restaurants. They are strong, easy to clean, and look modern. Many have digital temperature controls and energy-saving settings. These features help lower the average wattage and save money on bills.

Tip: If you use other stainless steel kitchen tools or food equipment, check the total amps. This helps you keep your electrical circuit safe from overload.

Always think about how many amps your refrigerator uses when setting up your kitchen. Knowing the amp draw helps you pick the right circuit and breaker. It also keeps your kitchen safe and working well. No matter what kind of fridge you have, knowing about refrigerator amps helps you manage your kitchen safely and smartly.

Find Refrigerator Amps

Nameplate and Labels

You can check your refrigerator’s nameplate or label to learn about its power use. Manufacturers put these plates or stickers in places that are easy to find. Look for them inside the fridge door, on the back, or near the compressor. The nameplate lists things like wattage, voltage, frequency, and amps. This helps you know how much power your refrigerator uses. It also helps you plan your kitchen’s electrical setup.

The nameplate is made to last and is easy to read. You can use it to answer questions about how many watts your refrigerator uses each day or hour. If you have a GD ASIAN GROUP stainless steel refrigerator or other kitchen equipment, always check the nameplate before you install it. Doing this keeps your kitchen safe and helps you control power use.

Tip: Energy Star labels also show average power use and efficiency. These labels help you compare models and pick the best one for you.

Energy Meter Method

You can use an energy meter or clamp meter to measure your refrigerator’s real amp draw. Plug the energy meter into the wall, then plug your fridge into the meter. The screen will show you the wattage and amps right away. Clamp meters sense the electric field around the power cord. You do not have to cut any wires. These tools give you correct numbers for power use.

Tests show that clamp meters and energy meters work well for checking refrigerator amp draw. Make sure your meter is good enough for small appliances. This way, you can track average wattage and see if there are any big spikes in use. If you have other GD ASIAN GROUP products, like food processing machines, you can use this method to check their power use too.

Knowing your refrigerator’s wattage and amp draw helps you stop overloads and manage your kitchen’s power. You can also use this information to compare fridges and pick the most efficient one for your home or business.

Calculate Amps

Amps Formula

You can find out how many amps your refrigerator uses with a simple math formula. The formula is:

Amps = Watts ÷ Volts

This formula lets you change the number of watts into amps. If you know the watts your refrigerator uses, you can figure out the amps. Experts at the National Institute of Standards and Technology (NIST) have tested this formula and trust it. Electricians and people who make appliances use this formula all the time. You will see it on data plates and in wiring books at home. It works for all refrigerators, even stainless steel and commercial ones.

Tip: Always look at the voltage on your refrigerator’s nameplate. Most home refrigerators in the US use 120 volts. Some commercial refrigerators use 220 volts.

Example Calculation

Let’s try an example together. Imagine you have a GD ASIAN GROUP stainless steel refrigerator. The nameplate says it uses 480 watts and 120 volts. Here is how you find the amps:

1. Write down the watts: 480.

2. Write down the volts: 120.

3. Use the formula: Amps = Watts ÷ Volts.

4. Put in the numbers: Amps = 480 ÷ 120.

5. The answer is 4 amps.

You can use this way to check any kitchen equipment, like food processors or other stainless steel tools. If you want to know the average running wattage or average wattage, look at the Energy Star label or use an energy meter. This helps you compare your refrigerator’s average wattage with other kitchen appliances. Knowing the amps helps you plan your circuits and stop overloads, especially if you use many appliances at once.

Note: Always use the real wattage from your refrigerator’s label for the best answer. The average running wattage is usually less than the highest wattage listed.

Factors Affecting Refrigerator Amps

Size and Features

The size of your refrigerator changes how many amps it uses. Bigger refrigerators need more energy to keep things cold. If you pick a large fridge, it will use more amps and watts. Research shows that fridges with more space or extra sections use more power. For example, side-by-side models or ones with big freezers use more energy than small fridges.

Features matter too. If your fridge has an ice maker, water dispenser, or digital controls, it will use more amps. These features add to the total watts and make the fridge use more power. A Nature article looked at 28 fridges and found that size and features can change how many amps are used. The Renogy blog says that bigger fridges or ones with more features usually use more current. When you plan your kitchen, think about all the power your appliances use, especially if you have other stainless steel kitchen tools or food machines from GD ASIAN GROUP.

Tip: To use less power, pick a fridge with fewer features and the right size for your family.

Age and Efficiency

How old your fridge is changes how many amps it uses. Older fridges often use more energy than new ones. Studies show that a fridge over 15 years old can use about 20% more energy than a new ENERGY STAR model. This means it uses more amps and costs more money each year.

New fridges, especially ENERGY STAR ones, have better compressors and insulation. These upgrades lower the watts and reduce the amps needed to run the fridge. Newer fridges also have better temperature controls, which help save power. If you use a GD ASIAN GROUP stainless steel fridge, you get these energy-saving features.

• Old fridges can cost about $95 more each year in electricity.

• ENERGY STAR fridges are about 9% more efficient than regular ones.

• Bottom freezer fridges and manual defrost models use less energy.

If you want to save money and help the planet, think about getting a new, efficient fridge. Always check the watts and amps before you buy.

Circuit and Safety

Dedicated Circuit

Your refrigerator needs its own circuit to stay safe. The National Electrical Code says you should use a 15-20 amp, 120-volt circuit just for your fridge. This rule helps your fridge handle power surges when it starts and runs. If you share a circuit, you might trip breakers or cause electrical problems. Having a dedicated circuit also keeps your fridge safe from power drops when other appliances turn on. Most new kitchens follow this rule. When you put in a GD ASIAN GROUP stainless steel refrigerator or other kitchen equipment, always use a separate circuit. This helps your fridge work well and saves you from expensive repairs. In restaurants or hotels, a dedicated circuit is even more important because commercial fridges and food machines use more power.

Tip: Put a label on your refrigerator’s circuit at the breaker box. This helps you find it fast if you need to fix something or in an emergency.

Breaker and Wire Size

Picking the right breaker and wire size keeps your fridge safe. Most home fridges need a 15-amp or 20-amp breaker. Use 14-gauge wire for 15 amps and 12-gauge wire for 20 amps. This stops wires from getting too hot and lowers fire risk. The NEC says to use GFCI protection if your fridge outlet is near water. All kitchen circuits must have AFCI protection. These devices help stop shocks and electrical fires.

Here is a simple guide:

• Always check your wiring before turning on the power.

• Use a circuit tester to make sure the wires are right.

• Follow wire color codes so you do not make mistakes.

Good installation keeps your fridge and other kitchen tools safe. If you are not sure about wiring, call a licensed electrician. Safe circuits help your GD ASIAN GROUP products last longer and work better.

Most refrigerators use 2.5 to 6.7 amps. Stainless steel models usually use less power. Always look at your refrigerator’s label or use a meter. This tells you the exact amps your fridge uses. Knowing this keeps your kitchen safe and helps you use less power. Use a dedicated circuit for your fridge and other stainless steel kitchen tools. This is important in homes and restaurants. Pick energy-saving models from GD ASIAN GROUP if you want to save power. Check your refrigerator’s amp usage often and follow safe electrical rules.

FAQ

How do you check how many amps your refrigerator uses?

Look for the amp rating on the nameplate inside your refrigerator. You can also use an energy meter to see the amps right now. This helps you know the exact amps for your kitchen plans.

Do stainless steel refrigerators use less power?

Many stainless steel refrigerators from GD ASIAN GROUP have better compressors. These models often use fewer amps than old fridges. You can save energy and pay less for electricity.

Why does my refrigerator need a dedicated circuit?

A dedicated circuit keeps your refrigerator safe from too much power. It stops breakers from tripping and protects your kitchen equipment. This is important in homes and restaurants.

Can other kitchen equipment affect refrigerator amp usage?

Yes. If you use food processing machines or stainless steel kitchen tools on the same circuit, you could overload it. Always check the total amps for all your appliances to keep your kitchen safe.Pick energy-saving kitchen equipment to lower total amps and save money on your energy bill.
